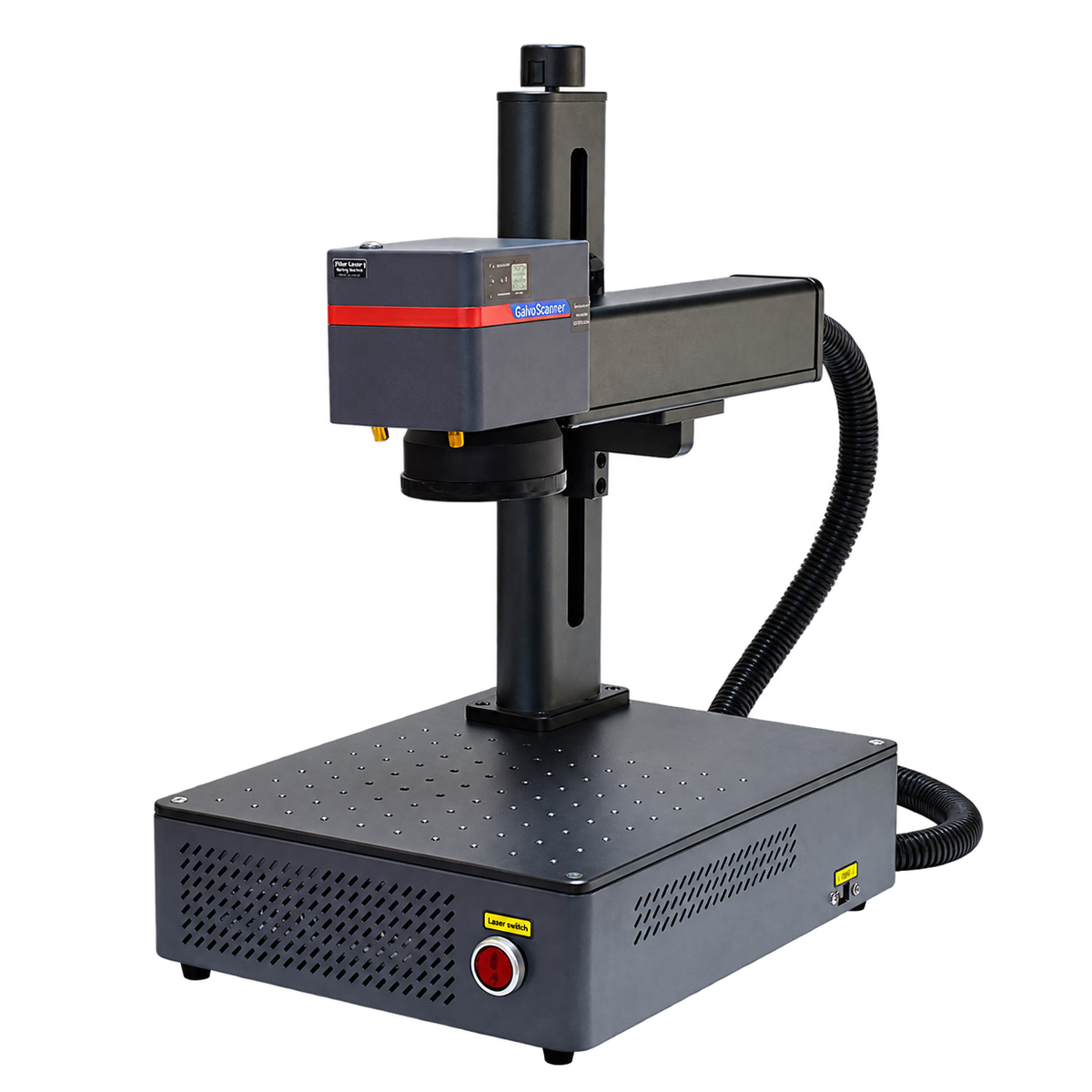

LZ-T5 Desktop Fiber Laser Marking Machine for Metal
Compact desktop fiber laser marking for metal parts, personalized gifts and product identification. Choose 20W, 30W or 50W power and a lens matched to your marking area.
Equipment selection · Free sample testing · Technical support

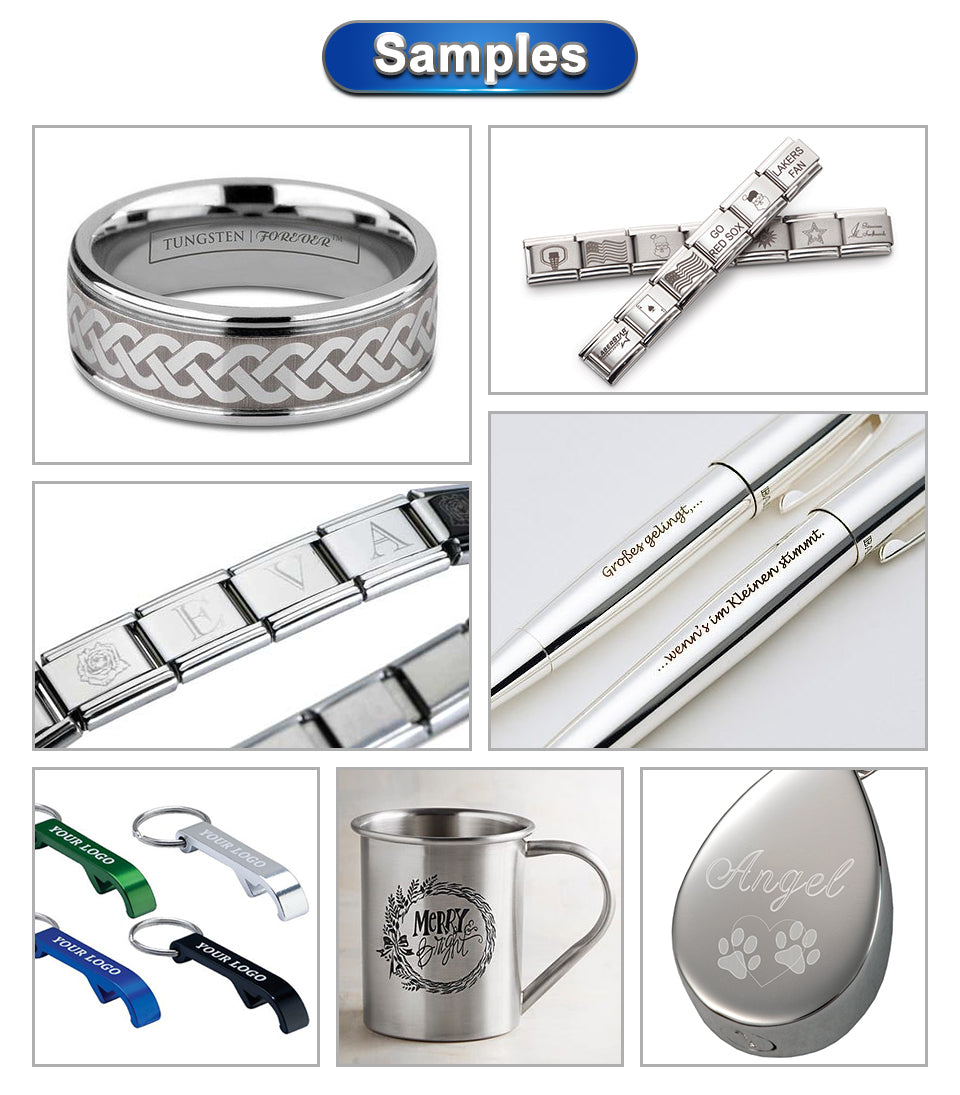

Marking Samples & Applications
Suitable applications include metal jewelry, pens, tags, promotional gifts and component identification. Curved workpieces may require a compatible rotary fixture. Material, surface treatment and required finish should be checked through sample testing.
Samples illustrate applications, not a guarantee for every material or configuration. Send your material and artwork for a free sample test.
Request a Free Sample TestCompact desktop fiber laser marking for metal parts, personalized gifts and product identification. Choose 20W, 30W or 50W power and a lens matched to your marking area.
Product Features
- Pulsed 1064 nm fiber laser with MAX source shown in the reference configuration.
- Compact 370 × 290 × 520 mm desktop format; listed machine weight 11 kg.
- Adjustable column, galvanometer scanning head and red-light positioning preview.
- EZCAD2 control for artwork, text, serial numbers, QR codes and barcodes.
Configuration & Customization
Select 20W, 30W or 50W according to your material, desired mark and production requirements. Lens options cover 110 × 110, 150 × 150 and 175 × 175 mm. A rotary device is optional for compatible cylindrical workpieces. Specify 220V/50Hz or the optional 110V/60Hz supply before ordering.
Applications & Material Selection
Suitable applications include metal jewelry, pens, tags, promotional gifts and component identification. Curved workpieces may require a compatible rotary fixture. Material, surface treatment and required finish should be checked through sample testing.
Technical Specifications
View technical specifications
| Model | LZ-T5 |
|---|---|
| Laser type | Pulsed fiber laser |
| Power options | 20W / 30W / 50W |
| Wavelength | 1064 nm |
| Marking area options | 110 × 110 / 150 × 150 / 175 × 175 mm |
| Control software | EZCAD2 |
| Cooling | Air cooled |
| Listed maximum marking speed | 7,000 mm/s; actual cycle time depends on the artwork and material |
| Repetition frequency | 20–80 kHz |
| Positioning | Red-light preview |
| Machine dimensions | 370 × 290 × 520 mm |
| Machine weight | 11 kg |
| Electrical supply | 220V/50Hz; 110V/60Hz optional |
| Listed power consumption | ≤300W |
Values depend on the selected configuration and operating conditions. Confirm the final specification and required marking result before ordering.
Order-specific Packaging
The reference packing is a 600 × 430 × 390 mm carton with a listed packed weight of 15 kg. Final packing and included accessories are confirmed for your order.
Packaging, Delivery & Technical Support
Installation & training
English manuals and videos support setup and operation. Our technical team provides remote training and assistance with day-to-day use. On-site training and technical support can be arranged by agreement.
Spare parts & equipment planning
We prepare corresponding spare parts for each machine and help plan compatible equipment for your production workflow.
Frequently Asked Questions
How do I choose the right laser marking machine?
Start with your material, coating, marking area, required contrast and production volume. Compare Fiber, CO2 and UV options, then confirm the result with a sample test.
Can you test my material before I order?
Yes. We provide free sample testing to check the proposed configuration. Send your artwork and material information using the inquiry form; sample shipping arrangements are agreed separately.
Can the configuration be customized?
We help select the listed power and lens options. Tell us your workpiece dimensions, electrical supply and any rotary marking requirements so we can confirm a compatible configuration.
What is the price and delivery time?
We quote according to the selected configuration, accessories and delivery requirements. Lead time is confirmed for your specific order.

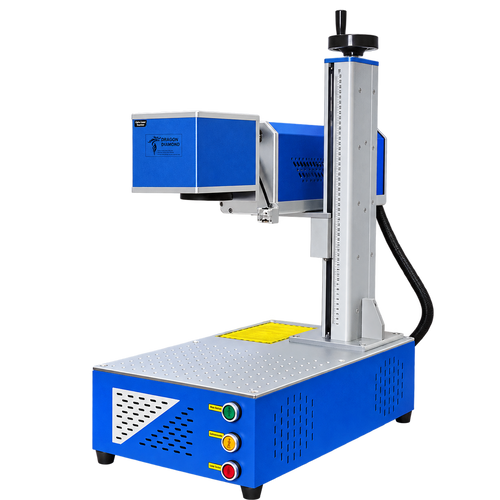

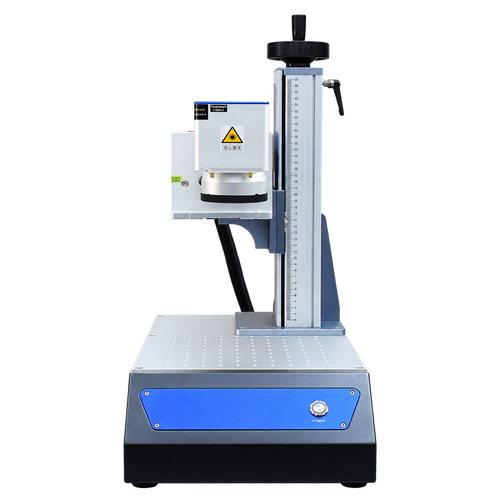

Compare Laser Marking Machines
