DRAGON DIAMOND · FIBER LASER CUTTING SOLUTIONS

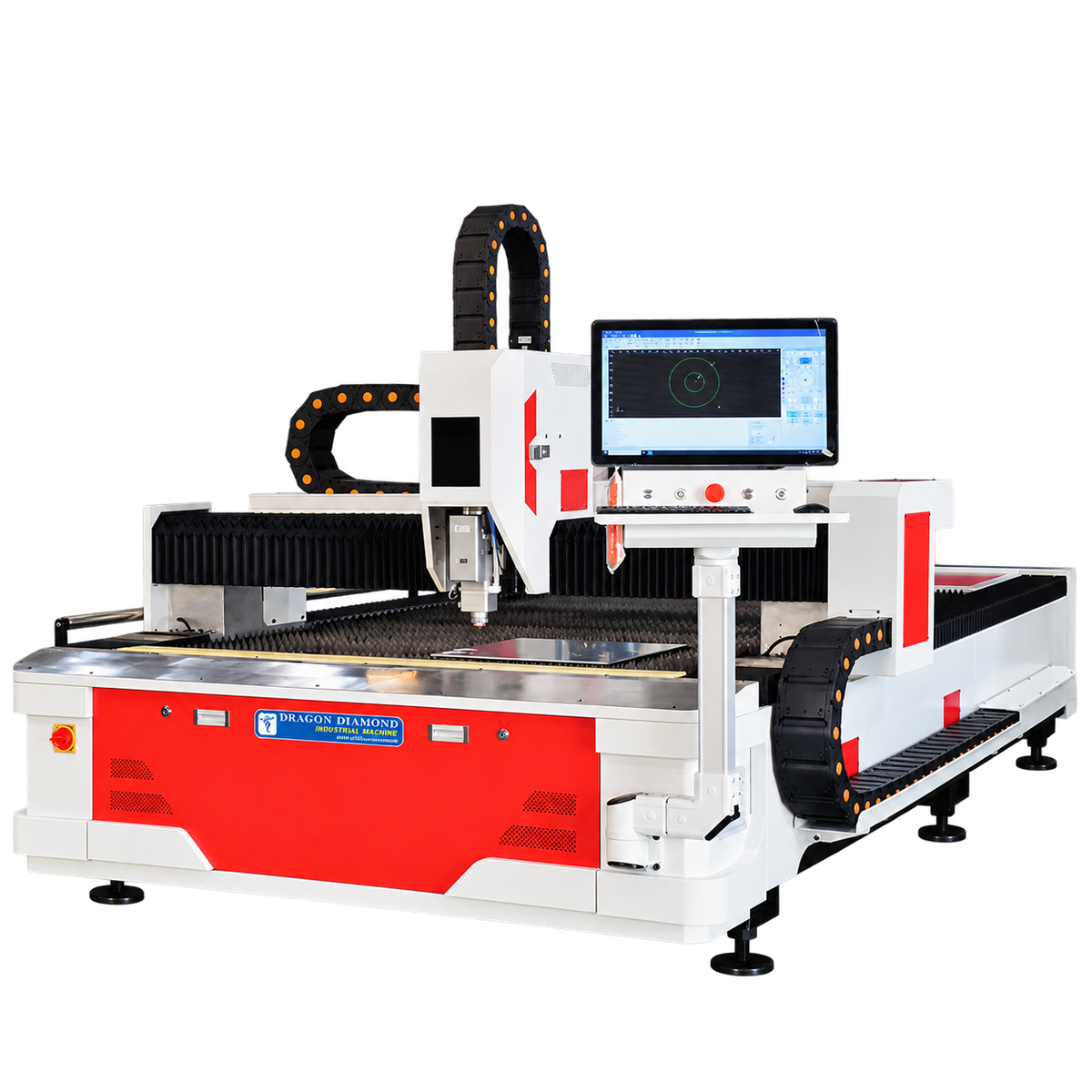

LZ-1530F Fiber Laser Cutting Machine for Sheet Metal | 1.5kW–6kW
LZ-1530F fiber laser cutting for sheet-metal fabrication, metal signage and custom components. The 1500 × 3000 mm platform is offered with a MAX 1.5kW configuration and 3kW or 6kW power options.
Equipment selection · Free sample testing · Technical support
MATERIALS & POSSIBILITIES
Cutting Applications & Sample Ideas
Explore decorative metal panels and shaped sheet-metal parts. Confirm material, thickness and edge finish with a free sample test.

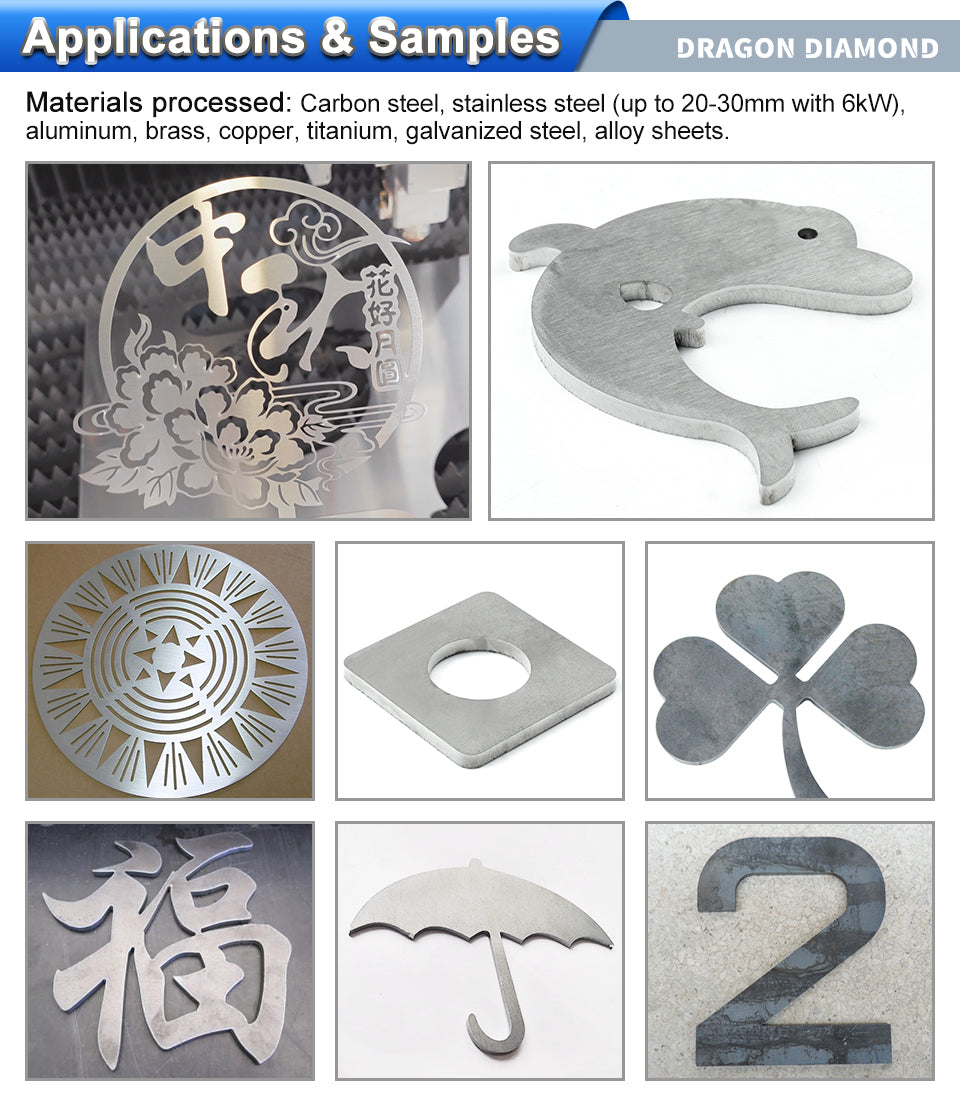

Decorative Metal Panels
Signage · Interior decoration · Custom patterns
Custom Sheet-Metal Parts
Shaped components · Metal crafts · Fabrication
Swipe to explore both applications →
LZ-1530F fiber laser cutting for sheet-metal fabrication, metal signage and custom components. The 1500 × 3000 mm platform is offered with a MAX 1.5kW configuration and 3kW or 6kW power options.
Product Features
- 1500 × 3000 mm cutting bed for full-sheet production.
- Automatic focus adjustment and FSCUT2000E control.
- MAX or Raycus laser source and Raytools or BOCI head options.
- Servo drive and water cooling for the selected cutting configuration.
Configuration & Customization
Start with your metal grade, thickness, sheet size, required edge finish and daily output. We help choose between 1.5kW, 3kW and 6kW, then confirm the source, cutting head, cooling, assist gas and electrical supply. Final components and included accessories are specified in your quotation.
Applications & Material Selection
Applications include sheet-metal components, signs, decorative panels and custom metal products. The source lists carbon steel, stainless steel, aluminum, brass, copper, titanium, galvanized steel and alloy sheets. Suitability and cutting thickness depend on the chosen source, power, assist gas and material grade. Send your actual material and drawing for a free sample test.
Technical Specifications
View technical specifications
| Model | LZ-1530F |
|---|---|
| Working area | 1500 × 3000 mm |
| Laser power options | 1500W / 3000W / 6000W |
| Laser source options | MAX / Raycus; confirm selected configuration |
| Cutting head options | Raytools / BOCI |
| Focus method | Automatic focus adjustment |
| Controller | FSCUT2000E |
| Drive system | BOCHU servo with TECHMECH reducer |
| Cooling | Water cooling with S&A chiller; model matched to laser power |
| Electrical supply | 220V / 380V, 50Hz listed; confirm phases and site requirements |
| Reference machine weight | 2000 kg; confirm final configuration |
Specifications depend on configuration. Cutting thickness and production speed are confirmed for your material and required finish before ordering.
Packaging & Shipping
Export packing, shipping method, packing dimensions and gross weight are confirmed for your configuration and destination. Delivery time is negotiated for each order.
Packaging, Delivery & Technical Support
Installation & training
English manuals and videos support setup and operation. Our technical team provides remote training and assistance with day-to-day use. On-site training and technical support can be arranged by agreement.
Spare parts & equipment planning
We prepare corresponding spare parts for each machine and help plan compatible equipment for your production workflow.
Frequently Asked Questions
How do I choose the right fiber laser cutting machine?
Start with your material, coating, cutting area, required contrast and production volume. Confirm the material grade, sheet thickness, assist gas and required finish with a sample test.
Can you test my material before I order?
Yes. We provide free sample testing to check the proposed configuration. Send your artwork and material information using the inquiry form; sample shipping arrangements are agreed separately.
Can the configuration be customized?
Choose 1.5kW, 3kW or 6kW power, then confirm the laser source, cutting head, chiller, assist gas and electrical requirements for your production.
What is the price and delivery time?
We quote according to the selected configuration, accessories and delivery requirements. Lead time is confirmed for your specific order.
Related Equipment
Get a Quote for Your Cutting Application
Tell us your material, workpiece size, artwork and production requirements.
