Confirm before shipping
We agree the printheads, ink channels, electrical requirements, accessories, packing and shipping method in your quotation. Delivery time is negotiated for each order.
DRAGON DIAMOND · UV FLATBED PRINTING
LZ-6090UV UV Flatbed Printer | 600 × 900 mm
LZ-6090UV is a 600 × 900 mm UV flatbed printer for signs, display graphics and personalized products. Choose XP600, I1600 or I3200 printheads and a suitable color, white and varnish configuration for your production.
Equipment selection · Free sample testing · Technical support
MATERIALS & POSSIBILITIES
UV Printing Applications & Samples
Explore layered UV printing on clear panels and the finished color artwork. Send your own design and substrate for a free sample test.

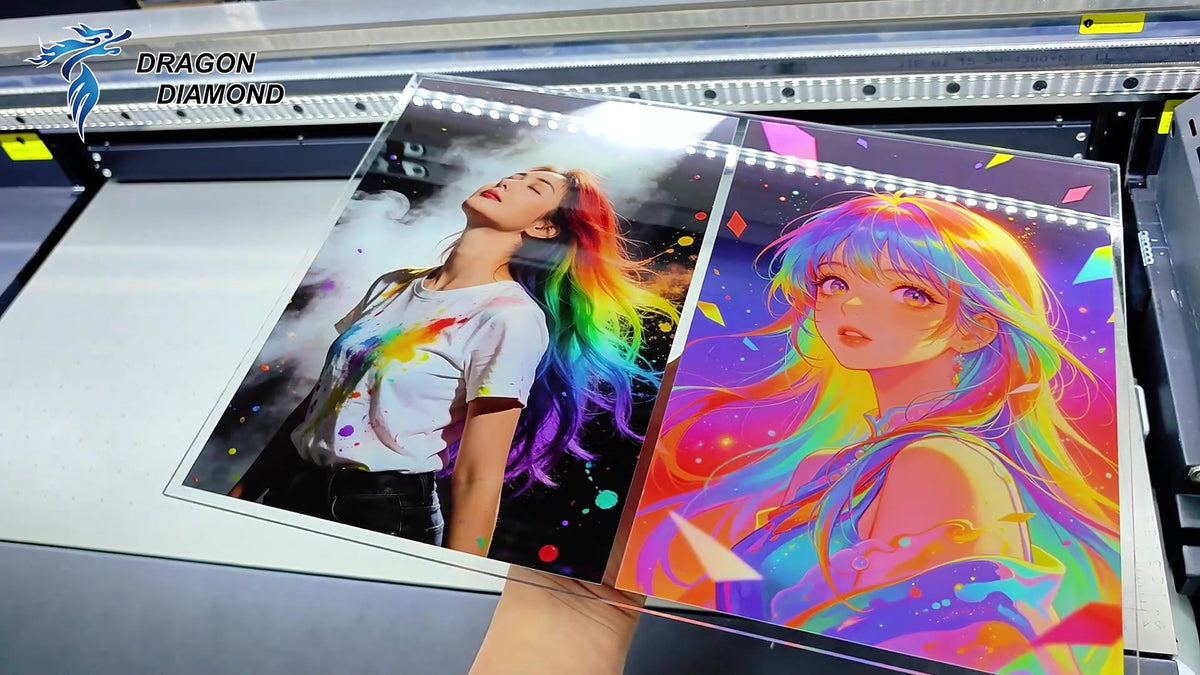

Color Artwork on Clear Panels
Display graphics · Decorative panels
Color + White Printing
Reverse printing · Layered ink application
Swipe to explore both applications →
LZ-6090UV is a 600 × 900 mm UV flatbed printer for signs, display graphics and personalized products. Choose XP600, I1600 or I3200 printheads and a suitable color, white and varnish configuration for your production.
Product Features
- 600 × 900 mm vacuum platform for suitable flat substrates.
- XP600, I1600 or I3200 printhead options.
- Color, white and varnish channel configurations matched to the required finish.
- Adjustable print height for different workpieces, subject to clearance and fixture confirmation.
Configuration & Customization

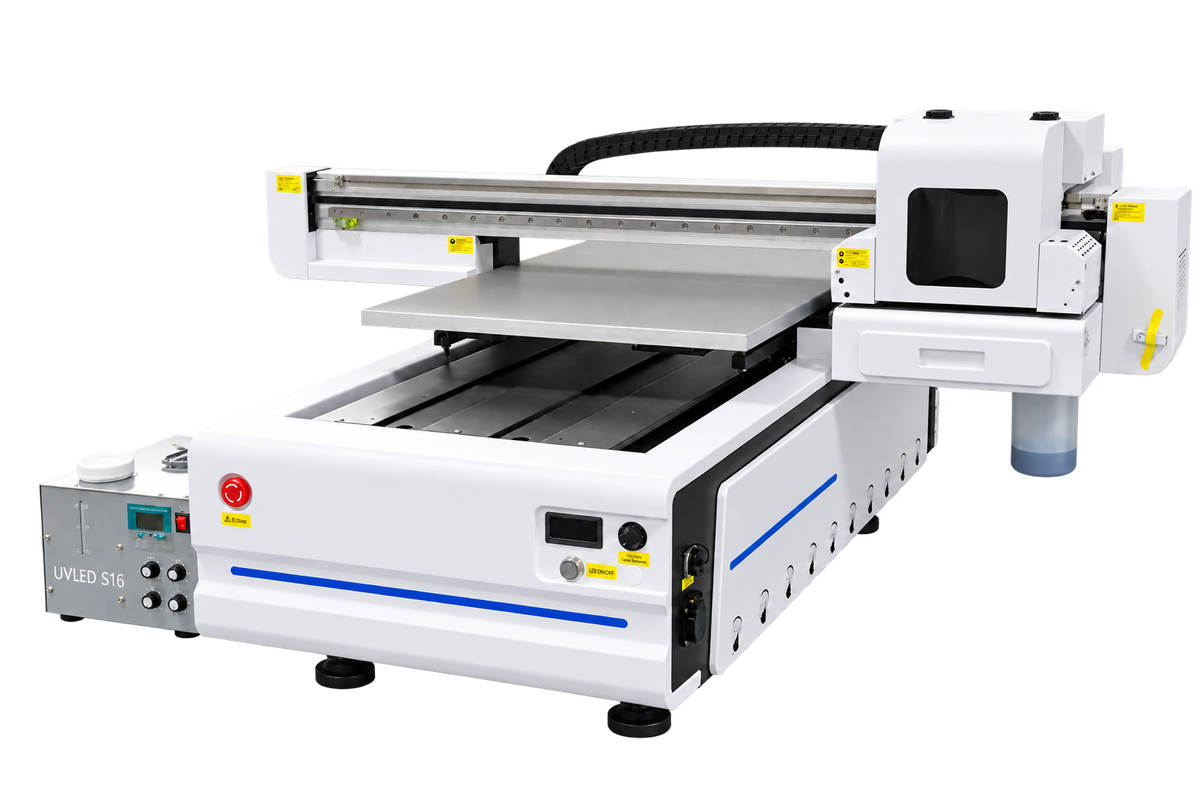

Share your substrate, artwork, print dimensions, daily output and desired finish. We help select the printhead type, head count, ink channels and any required workpiece fixtures. The photographed equipment includes an external UV LED unit; final supplied accessories and components are specified in your quotation.
Applications & Material Selection
Suitable applications include acrylic display graphics, glass decoration, wood crafts, plastic products and printed metal panels. Material suitability depends on surface treatment, ink selection and adhesion requirements. Use a sample test to confirm color, layer order and the finished result before ordering.
For printed acrylic signage, a UV flatbed printer can be paired with a CO2 laser cutter using the optional camera system for contour cutting. Explore the LZ-1390 CO2 laser cutter.
Technical Specifications
View technical specifications
| Model | LZ-6090UV |
|---|---|
| Maximum print area | 600 × 900 mm |
| Printhead options | XP600 / I1600 / I3200 |
| Printhead count options | 1 / 2 / 3 / 4; configuration-dependent |
| Ink channel options | 4 or 6 colors, white, varnish and spot-color configurations; confirm included channels |
| Listed adjustable print height | 3–180 mm; confirm clearance for your workpiece and fixtures |
| Table | Vacuum adsorption platform |
| Reference machine dimensions | 1610 × 1706 × 737 mm, unpacked; confirm final configuration |
Printing speed depends on printhead configuration, pass count, ink layers, artwork and quality settings. Confirm electrical supply, ink compatibility and final specifications in your quotation.
Packaging & Shipping
Export packing, shipping method, package dimensions and gross weight are confirmed for your configuration and destination. Delivery time is negotiated for each order.
Packaging, Delivery & Technical Support
Installation & training
English manuals and videos support setup and operation. Our technical team provides remote training and assistance with day-to-day use. On-site training and technical support can be arranged by agreement.
Spare parts & equipment planning
We prepare corresponding spare parts for each machine and help plan compatible equipment for your production workflow.
Frequently Asked Questions
What can the LZ-6090UV print on?
It supports flatbed printing applications on suitable acrylic, glass, wood, plastic and metal surfaces. Ink adhesion and any primer or surface preparation requirements should be checked with your actual material through a sample test.
Which printhead should I choose?
XP600, I1600 and I3200 options are available. Share your artwork, output target and required finish so we can recommend the printhead count and ink-channel configuration.
Can it print color and white ink on clear panels?

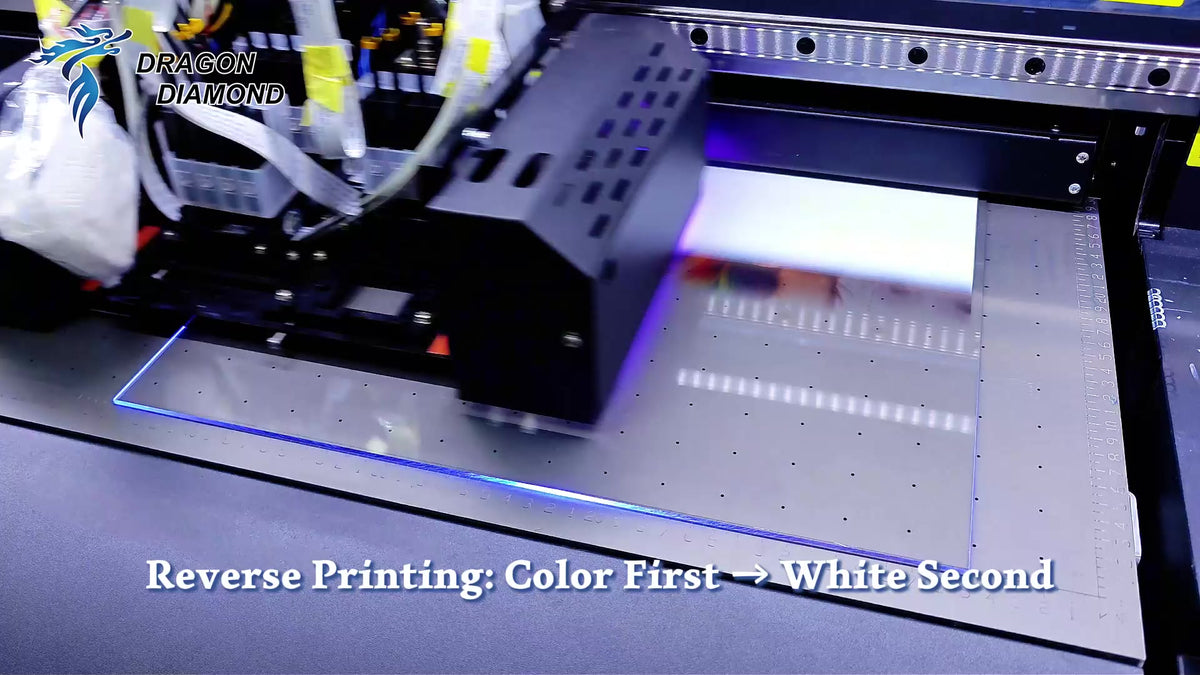

A suitable white-ink configuration supports layered printing on transparent panels. The demonstration shows reverse printing with color first and white second. Confirm the substrate, viewing side and layer order during sample testing.
Can you test my artwork before I order?
Yes. Request a free sample test using your artwork and material requirements. Sample shipping arrangements are agreed separately.
What is the price and delivery time?
We quote according to the selected printheads, ink configuration, accessories and shipping requirements. Delivery time is negotiated for each order.
Related Equipment
Get a Quote for Your Printing Application
Tell us your substrate, print size, artwork, required finish and production volume.
