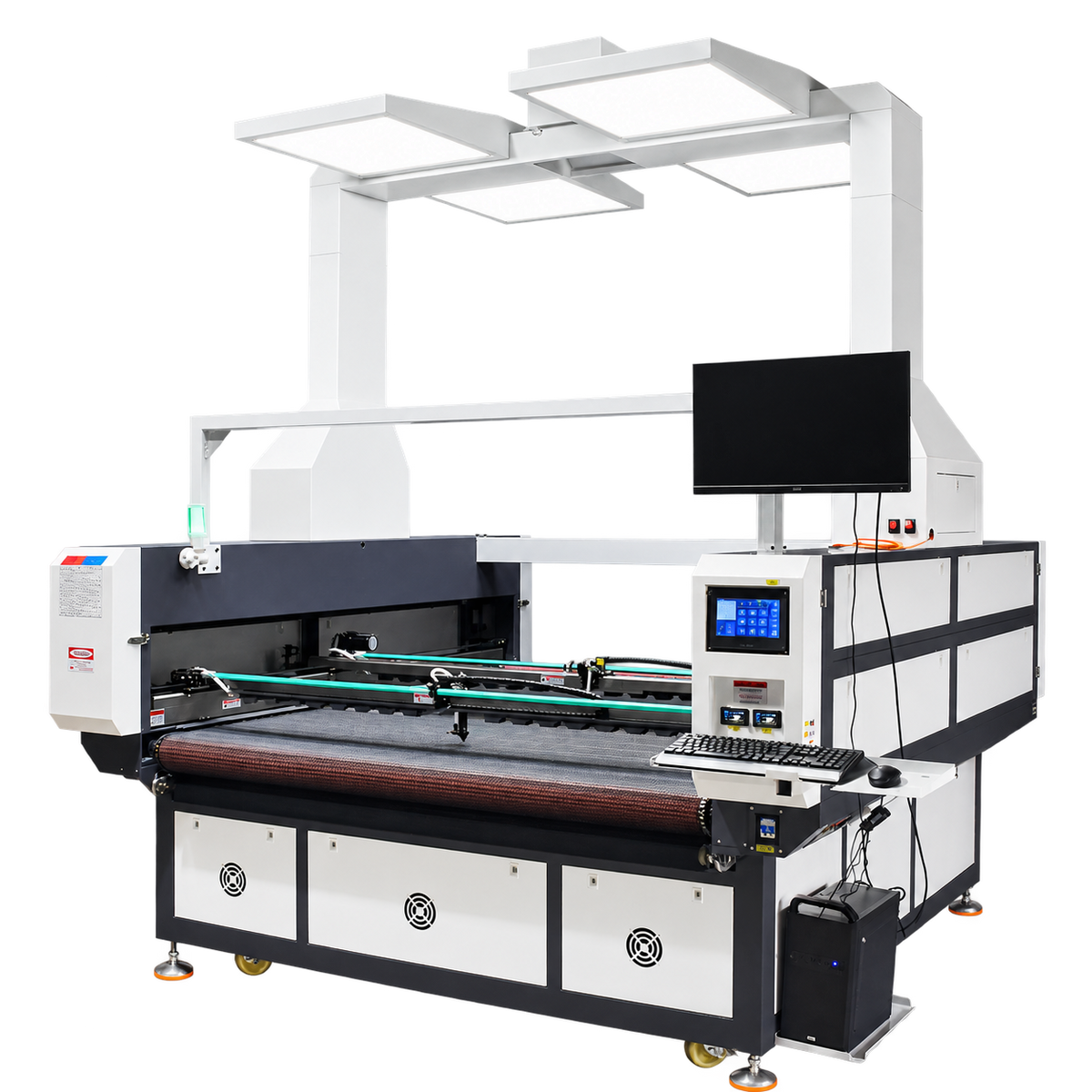

LZ-1816L Panoramic Vision Fabric Laser Cutting Machine
LZ-1816L is a panoramic vision CO2 laser cutting machine for printed fabrics and textile components. It combines a 1800 × 1600 mm working area, two 150W laser heads and a standard conveyor table. An automatic roll fabric feeder is available separately as an option.
1800 × 1600 mm · 150W × 2
Panoramic vision + conveyor table included
Automatic roll fabric feeder optional
PRINTED FABRIC & DECORATIVE TEXTILES

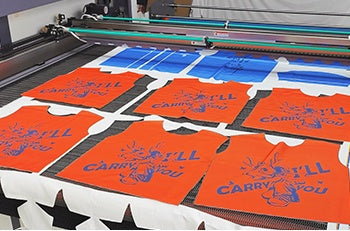

Fabric Cutting Applications & Samples
Examples from our product application materials. Send your actual fabric and artwork to confirm contour recognition and edge finish.
Watch the LZ-1816L fabric cutting demonstration
LZ-1816L is a panoramic vision CO2 laser cutting machine for printed fabrics and textile components. It combines a 1800 × 1600 mm working area, two 150W laser heads and a standard conveyor table. An automatic roll fabric feeder is available separately as an option.
Standard Configuration & Optional Equipment
Standard: vision cutting + conveyor table
- Large-format panoramic vision positioning system.
- 1800 × 1600 mm working area.
- 150W × 2 CO2 laser heads with dual-track asynchronous operation.
- Conveyor feeding table for moving fabric through the cutting area.

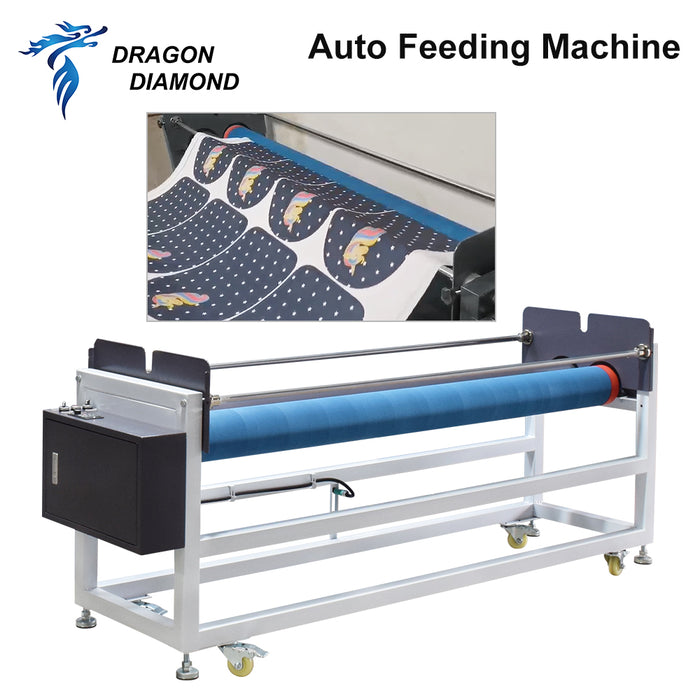

Optional: automatic roll fabric feeder
A separate feeding unit supports unwinding and supplying roll fabric to the conveyor table. The conveyor table is standard; the automatic fabric feeder is not included as standard.
Discuss roll width, roll weight, stretch and feeding requirements before selecting this option. Computer, extraction and other accessory requirements are confirmed in the quotation.
How Panoramic Vision Cutting Works
The camera captures printed patterns across the working area and supports contour recognition for cutting around the artwork. Two laser heads work on separate tracks. Artwork layout, material stretch and feed alignment affect the result, so test the actual fabric before confirming the production setup.
Textile Applications & Material Selection
Applications include printed garment panels, sportswear components, fabric graphics and decorative cut-outs. Share the fabric composition, coating, thickness, usable width and artwork so we can assess suitability and the desired edge finish.
The laser cuts the material; textile printing is a separate process. PVC-containing fabrics are not suitable for this CO2 laser process. Unknown coatings and blends must be identified before testing.
Technical Specifications
View LZ-1816L specifications
| Model | LZ-1816L |
|---|---|
| Working area | 1800 × 1600 mm |
| Laser power | 150W × 2 |
| Laser heads | Two heads; dual-track asynchronous configuration |
| Laser wavelength | 10.6 μm CO2 |
| Vision positioning | Large-format panoramic camera system |
| Standard worktable | Wire conveyor feeding table |
| Automatic roll fabric feeder | Optional separate unit |
| Control system | AWC5269 + camera system; final configuration per quotation |
| Cooling | CW5202 water chiller; confirm supplied configuration |
| Listed file formats | BMP, PLT, DXF, DST; confirm your artwork workflow |
Electrical supply, installed dimensions, packed dimensions and weight are confirmed for the final equipment configuration. Cutting speed and registration results are evaluated using your material and artwork.
Customization, Packaging & Shipping
We review fabric handling, artwork workflow, optional feeding equipment and the destination electrical supply before preparing the quotation. Export packing and shipping arrangements are specified for the order. Delivery time is negotiated for each order.
Conveyor Table ≠ Automatic Roll Feeder
The standard conveyor moves fabric through the machine. The optional roll feeder is a separate unit that supplies roll fabric to the table.
Tell us your roll dimensions and handling needs so the proposal clearly lists what is included.
Discuss the Feeding SetupDelivery, Training & Technical Support
Test before selecting
Review your printed fabric, artwork and sample results before confirming equipment.
Installation & training
English manuals and videos, remote installation training and direct technical support. On-site support can be arranged.
Spare parts & delivery
Equipment-specific spare parts and order-specific packing. Configuration and delivery timing are agreed in the quotation.
Frequently Asked Questions
Is the automatic fabric feeder included?
The conveyor feeding table is standard. The separate automatic roll fabric feeder is optional and is included only when specified in your quotation.
Is panoramic vision standard on this model?
Yes. This model includes panoramic vision positioning for printed-pattern contour cutting. Test your artwork and fabric to confirm recognition and the cut result.
Does the machine print the fabric?
No. It cuts fabric, including suitable pre-printed textiles. Printing takes place on separate equipment before vision-guided contour cutting.
Can you test my printed fabric before I order?
Yes. We provide a free sample test. Share the fabric composition, artwork, dimensions and required finish. Test and sample shipping arrangements are agreed separately.
How do I get a quotation and delivery schedule?
Send your fabric width, material, artwork, output requirements, destination and optional feeder needs. We confirm the configuration and negotiate delivery timing for your order.
